• Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
• Reliable Connections—Intel^® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
• Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
• Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Fine Crafting—Specialized gold plating is crafted to improve stability and reliability even in hot environments
• Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Hardware Features:

• Dimensions: 2.4 x 1.4 x 0.45 in (55 x 36 x 11.5 mm)
• Antenna Type: Two high-gain dual-band antennas
• Chipset: Intel Wi-Fi 6 chipset

Bluetooth Features:

• Standards and Protocols: Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
• Interface: F_USB 2.0

Wireless Features:

• Wireless Standards:

  • 5 GHz: IEEE 802.11ax/ac/n/a
  • 2.4 GHz: IEEE 802.11ax/n/g/b

• WLAN Signal Rate:

  • 5 GHz:
    • 11ax: Up to 2402 Mbps (dynamic)
    • 11ac: Up to 1733 Mbps (dynamic)
    • 11n: Up to 300 Mbps (dynamic)
    • 11a: Up to 54 Mbps (dynamic)
  • 2.4 GHz:
    • 11ax: Up to 574 Mbps (dynamic)
    • 11n: Up to 300 Mbps (dynamic)
    • 11g: Up to 54 Mbps (dynamic)
    • 11b: Up to 11 Mbps (dynamic)

• WLAN Reception Sensitivity:

  • 5 GHz:
    • 11ax HT160: -56.25 dBm
    • 11ax HT80: -59 dBm
    • 11ax HT40: -62.25 dBm
    • 11ax HT20: -65 dBm
    • 11ac HT160: -62 dBm
    • 11ac HT80: -65.5 dBm
    • 11ac HT40: -69.75 dBm
    • 11ac HT20: -73.75 dBm
    • 11n HT40: -74.5 dBm
    • 11n HT20: -77.5 dBm
    • 11a 54 Mbps: -77.75 dBm
    • 11a 6 Mbps: -94.5 dBm
  • 2.4 GHz:
    • 11ax HT40: -60.75 dBm
    • 11ax HT20: -63.75 dBm
    • 11n HT40: -73 dBm
    • 11n HT20: -76.25 dBm
    • 11g 54 Mbps: -76.5 dBm
    • 11b 11 Mbps: -89 dBm

• WLAN Transmit Power:

  • 5 GHz: 27 dBm (FCC) / 23 dBm (CE) (EIRP)
  • 2.4 GHz: 26 dBm (FCC) / 20 dBm (CE) (EIRP)

• WLAN Modes: Infrastructure mode

• Wireless Security: Supports 64/128-bit WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Other Features:

• Certifications: CE, FCC, RoHS
• Package Contents:

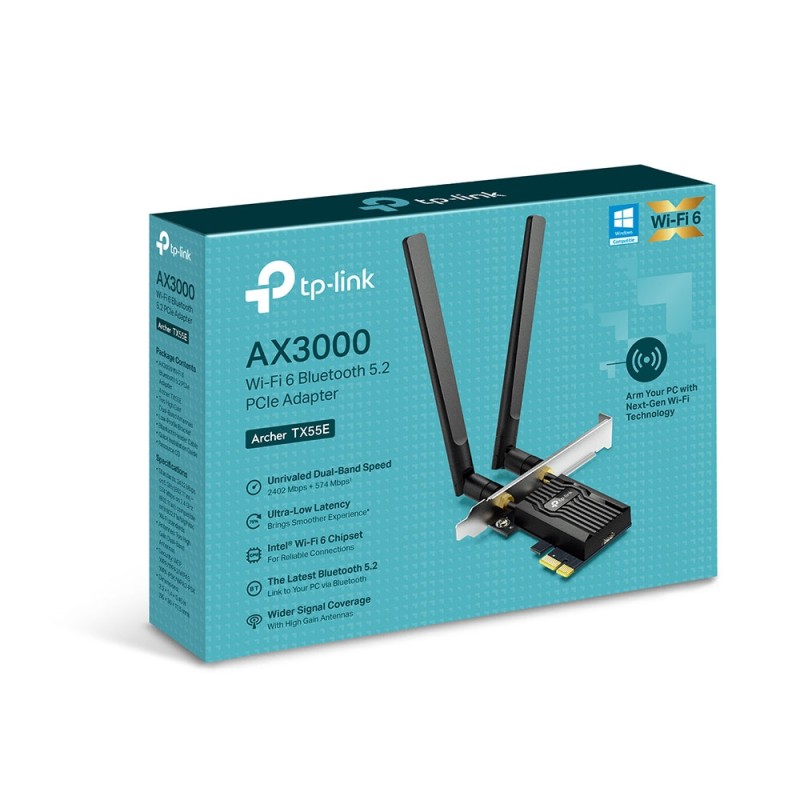

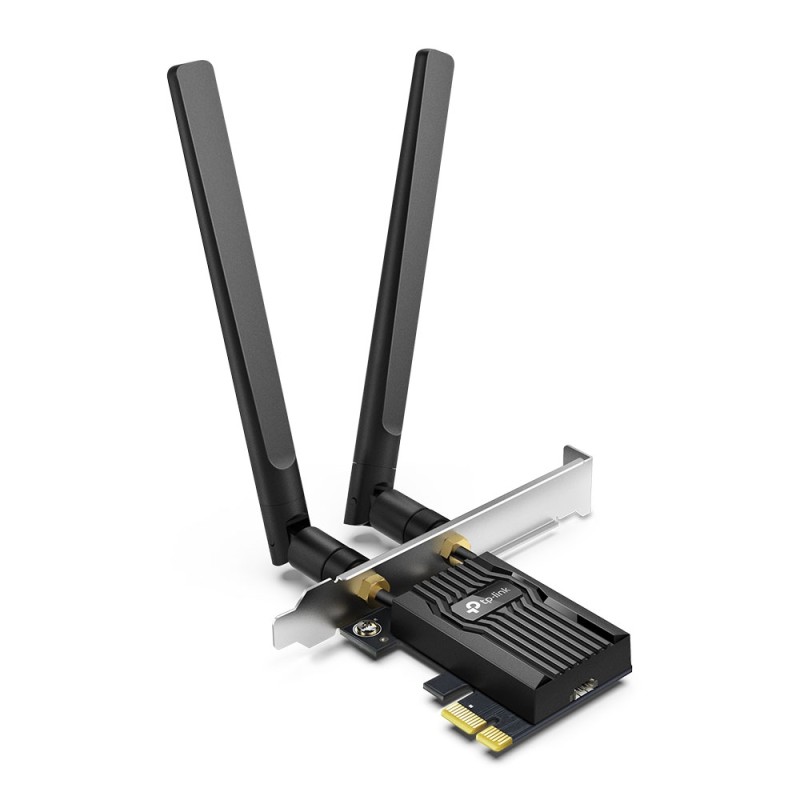

  • Archer TX55E
  • Two high-gain antennas
  • Low-profile bracket
  • Standard Bluetooth header cable
  • Quick installation guide
  • Resource CD
• System Requirements: Windows 10 (64-bit) only
