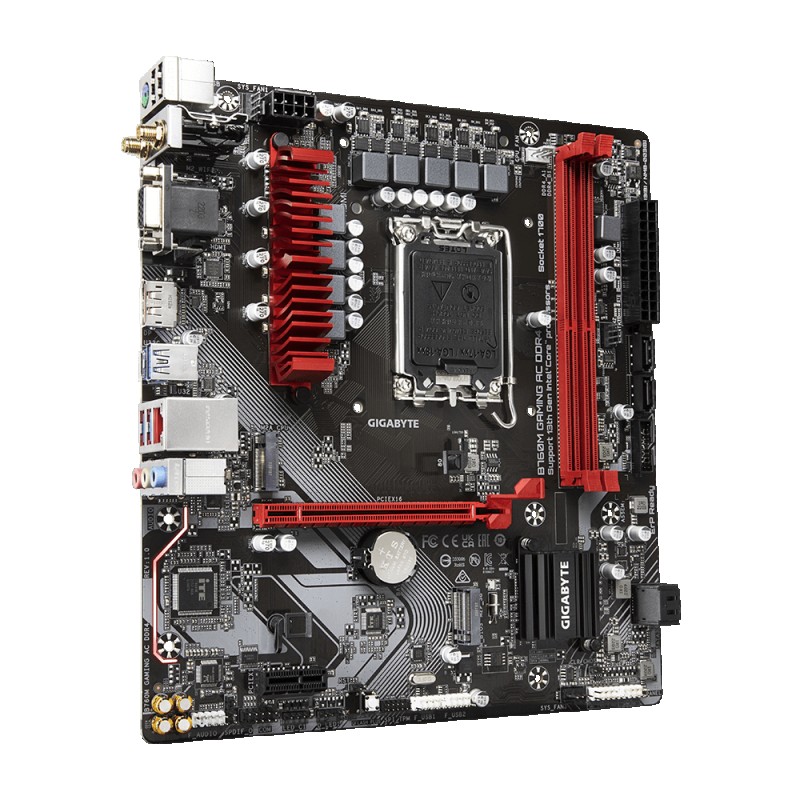

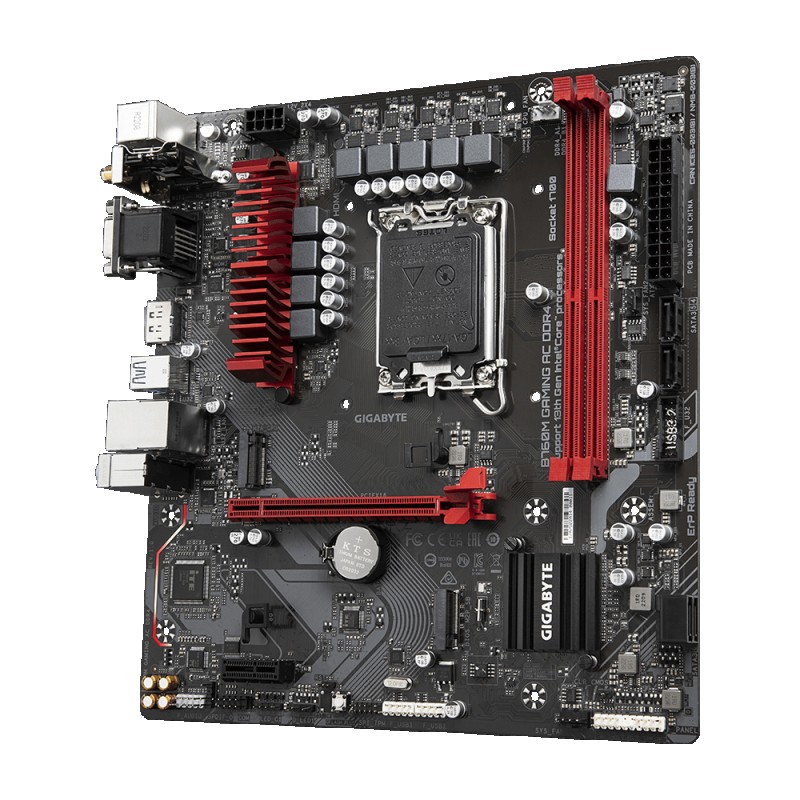

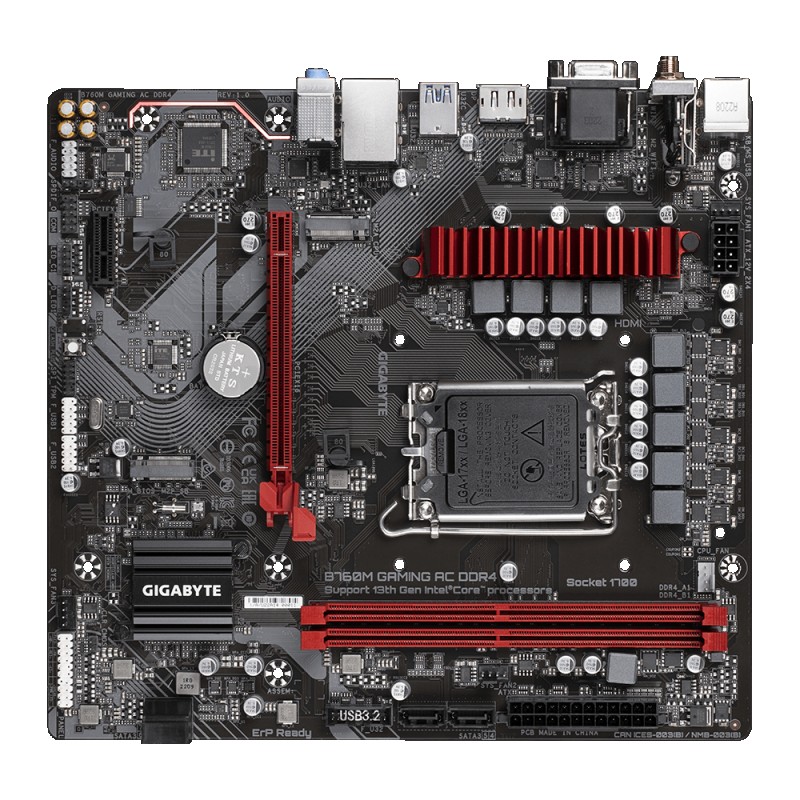

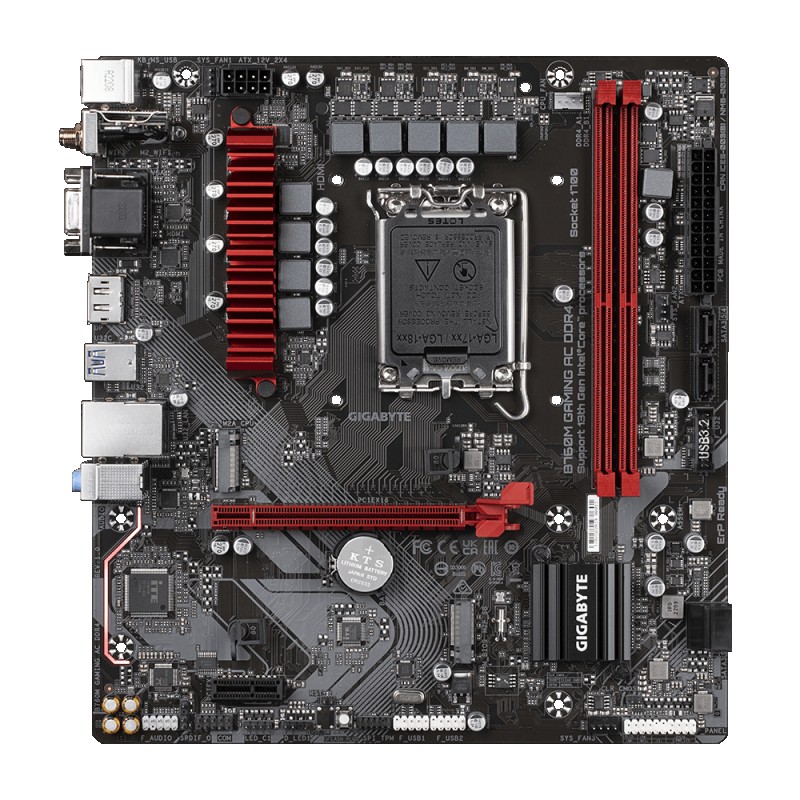

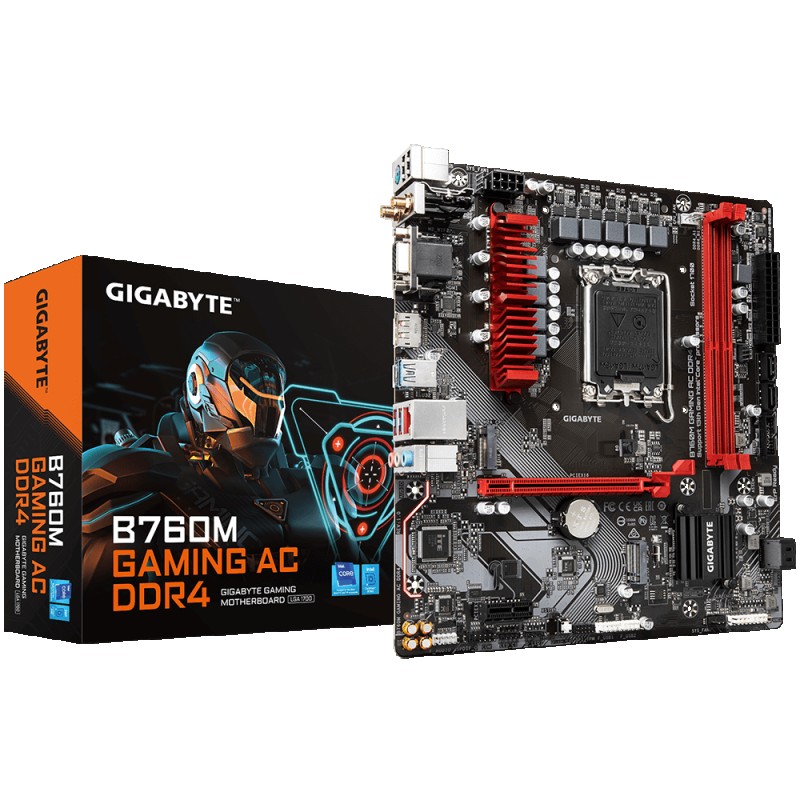

MOTHERBOARD INTEL 1700 GIGABYTE B760M GAMING AC DDR4
> Motherboards (MOBO)

MOTHERBOARD INTEL 1700 GIGABYTE B760M GAMING AC DDR4

30 000 DA
Products Disponible (limité)
ùAdd to cart

Share MOTHERBOARD INTEL 1700 GIGABYTE B760M GAMING AC DDR4 On Social Media

X 9 .

#INTEL #GIGABYTE #MOBO

Description

Motherboard Specifications

CPU Support

  • Socket: LGA1700
  • Supported Processors:
    • 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors
  • L3 Cache: Varies with CPU
  • (Refer to "CPU Support List" for compatibility details.)

Chipset

  • Intel® B760 Express Chipset

Memory

  • Type: DDR4
  • Speeds Supported:
    • Overclocking: Up to DDR4 5333(O.C.)
    • Standard: DDR4 3200/3000/2933/2666/2400/2133 MT/s
  • Capacity:
    • 2 x DIMM sockets
    • Up to 64 GB total (32 GB per DIMM)
  • Features:
    • Dual-channel architecture
    • Support for ECC and non-ECC un-buffered DIMMs
    • Extreme Memory Profile (XMP) support
  • (CPU and memory configuration may affect compatibility. Refer to the "Memory Support List" on the GIGABYTE website for details.)

Integrated Graphics

  • Graphics Processor: Intel® HD Graphics
  • Ports:
    • 1 x D-Sub: Max resolution 1920x1200 @ 60Hz
    • 1 x HDMI: Max resolution 4096x2160 @ 60Hz (HDMI 2.1, HDCP 2.3)
    • 1 x DisplayPort: Max resolution 4096x2304 @ 60Hz (DisplayPort 1.2, HDCP 2.3)
  • Displays: Support for up to 3 simultaneous displays

Audio

  • Audio Codec: Realtek® Audio CODEC
  • Channels: 2/4/5.1/7.1-channel
  • Features:
    • Configurable audio jacks
    • Support for S/PDIF Out

Networking

  • LAN: Realtek® 2.5GbE LAN chip
  • Wireless Communication (PCB revisions vary):
    • Realtek® Wi-Fi RTL8821CE (Rev. 1.0): Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0
    • Intel® Wireless-AC 9461 (Rev. 1.1): Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1
    • Intel® Wireless-AC 9560 (Rev. 1.2): Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.1

Expansion Slots

  • CPU:
    • 1 x PCIe 4.0 x16 slot (supports GPUs or NVMe SSDs)
  • Chipset:
    • 1 x PCIe 3.0 x1 slot

Storage

  • CPU:
    • 1 x M.2 (Socket 3, M key, type 2280) PCIe 4.0 x4/x2 SSD
  • Chipset:
    • 1 x M.2 (Socket 3, M key, type 2280) PCIe 4.0 x4/x2 SSD
    • 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA

USB Ports

  • Chipset:
    • 1 x USB Type-C® (USB 3.2 Gen 1) on back panel
    • 5 x USB 3.2 Gen 1 (3 rear, 2 internal headers)
    • 2 x USB 2.0/1.1 (rear)
    • 4 x USB 2.0/1.1 (internal headers)

Internal I/O Connectors

  • Power:
    • 1 x 24-pin ATX main power
    • 1 x 8-pin ATX 12V power
  • Fans:
    • 1 x CPU fan header
    • 3 x System fan headers
  • LEDs:
    • 1 x Addressable LED header
    • 1 x RGB LED header
  • Storage:
    • 2 x M.2 connectors
    • 4 x SATA 6Gb/s connectors
  • Audio:
    • 1 x Front panel audio header
    • 1 x S/PDIF Out header
  • Miscellaneous:
    • 1 x Trusted Platform Module header
    • 1 x Serial port header
    • 1 x Reset jumper
    • 1 x Clear CMOS jumper
    • 1 x Q-Flash Plus button

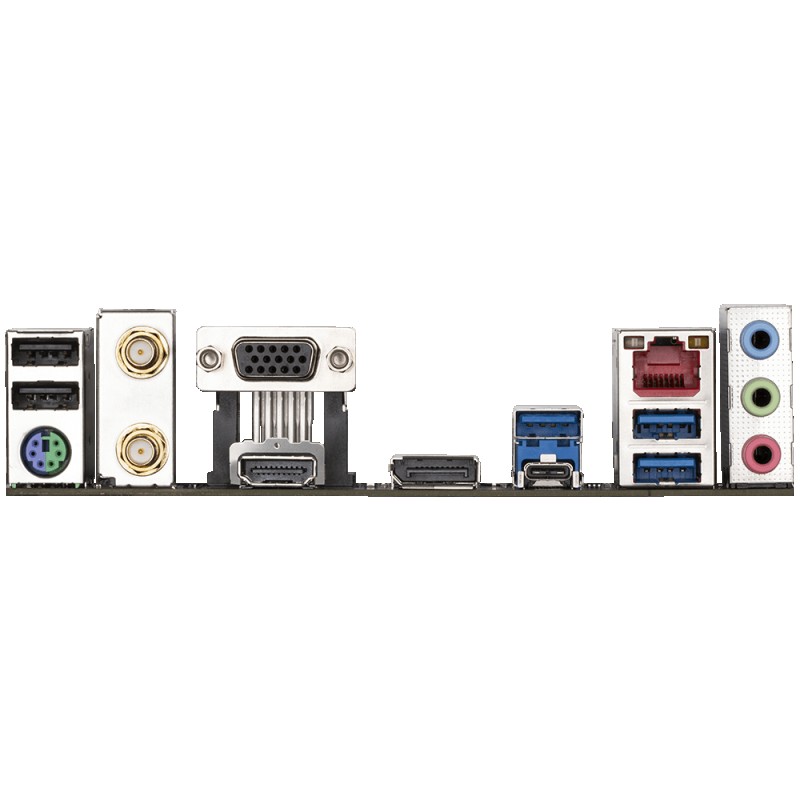

Back Panel I/O

  • 2 x USB 2.0/1.1
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 1 x RJ-45 LAN port
  • 3 x Audio jacks

Monitoring

  • Voltage, temperature, fan speed, and water cooling flow rate detection
  • Fan fail warning and fan speed control

BIOS

  • 128 Mbit flash
  • AMI UEFI BIOS

Form Factor

  • Micro ATX (24.4 cm x 22.5 cm)
