MOTHERBOARD AMD AM4 ASROCK B550 EXTREME 4
> Motherboards (MOBO)

MOTHERBOARD AMD AM4 ASROCK B550 EXTREME 4

40 500 DA
Products (Non disponible)

Product unavailable currently

Share MOTHERBOARD AMD AM4 ASROCK B550 EXTREME 4 On Social Media

X 9 .

#MOBO #ASRocK #INTEL

Description

ASRock B550 Motherboard

Unique Features:

  • ASRock USB 3.2 Gen2:
    • USB 3.2 Gen2 Type-A Port (10 Gb/s)
    • USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • ASRock Super Alloy:
    • XXL Aluminum Alloy Heatsink
    • Premium 60A Power Choke & Dr.MOS
    • High-Density Glass Fabric PCB
    • Nichicon 12K Black Caps (100% Japanese-made capacitors)
    • 2oz Copper PCB for improved stability
  • ASRock Steel Slot Gen4 and Full Coverage M.2 Heatsink
  • 2.5G LAN: Faster network speeds for gaming and streaming.
  • ASRock Live Update & APP Shop: Simplified updates and utility downloads.

CPU Support:

  • Compatible with AMD AM4 Ryzen™ 3000, 4000, 5000 Series (incl. G-Series).
  • 14 Power Phase design for superior stability.

Chipset:

  • AMD B550

Memory:

  • Dual-channel DDR4 support with 4 DIMM slots.
  • Maximum capacity: 128GB.
  • Overclocking support up to DDR4 4733+ MHz (CPU dependent).
  • Supports ECC & non-ECC unbuffered memory.

Graphics:

  • Integrated Radeon Vega Graphics (APU required).
  • HDMI 2.1 with 4K@60Hz support.
  • Shared memory up to 16GB (requires 32GB system memory).

Audio:

  • Realtek ALC1220 Codec for 7.1 Channel HD Audio.
  • Premium audio features:
    • 120dB SNR DAC with differential amplifier
    • Gold Audio Jacks & Nahimic Audio support

Network:

  • 2.5G LAN (Dragon RTL8125BG) with optimized gaming profiles.

Expansion Slots:

  • PCIe 4.0 x16 (with Ryzen CPUs), PCIe 3.0 support for APUs.
  • 2 x PCIe 3.0 x1 slots.
  • Supports AMD Quad CrossFireX™.

Storage:

  • 6 x SATA3 (6Gb/s) ports (supports RAID 0, 1, 10).
  • 2 x M.2 sockets:
    • Hyper M.2: PCIe Gen4x4 (up to 64Gb/s).
    • Standard M.2: SATA3/PCIe Gen3x2 (up to 16Gb/s).

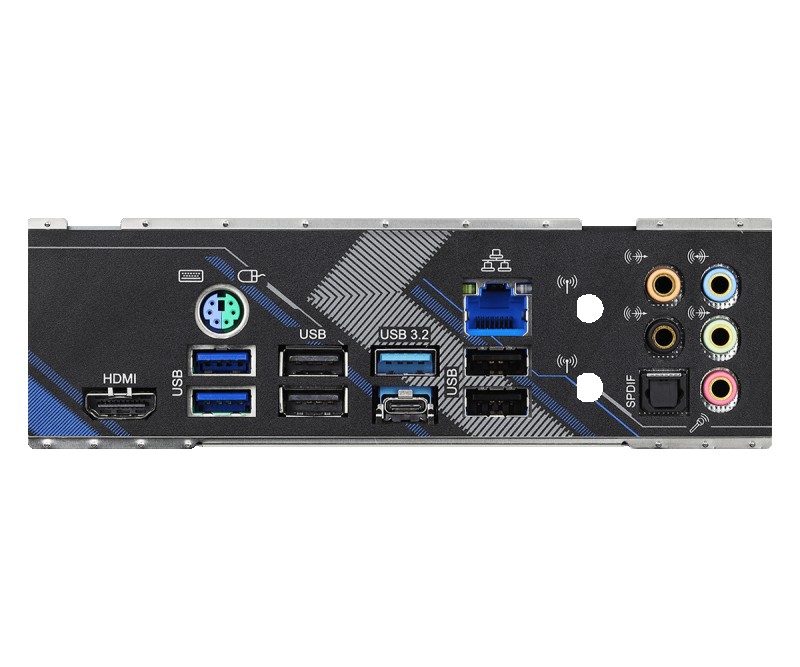

Rear I/O Ports:

  • 1 x HDMI, 1 x PS/2 port.
  • USB Ports:
    • 1 x USB 3.2 Gen2 Type-A (10Gb/s).
    • 1 x USB 3.2 Gen2 Type-C (10Gb/s).
    • 2 x USB 3.2 Gen1.
    • 4 x USB 2.0.
  • 1 x RJ-45 LAN port.
  • 7.1 HD Audio jacks (Gold).

Cooling & Connectors:

  • CPU/Water Pump fan headers with smart speed control.
  • 2 x Addressable RGB headers and 2 x RGB headers for customizable lighting.

Form Factor:

  • ATX (12.0 x 9.6 inches / 30.5 x 24.4 cm).
