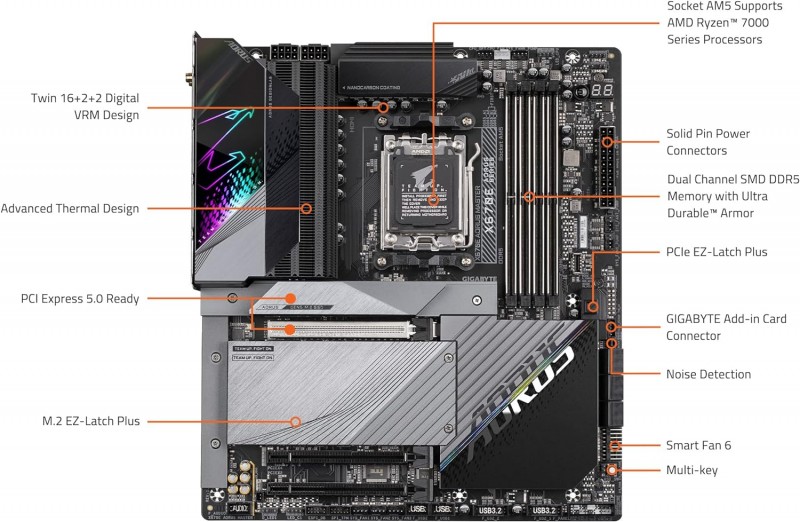

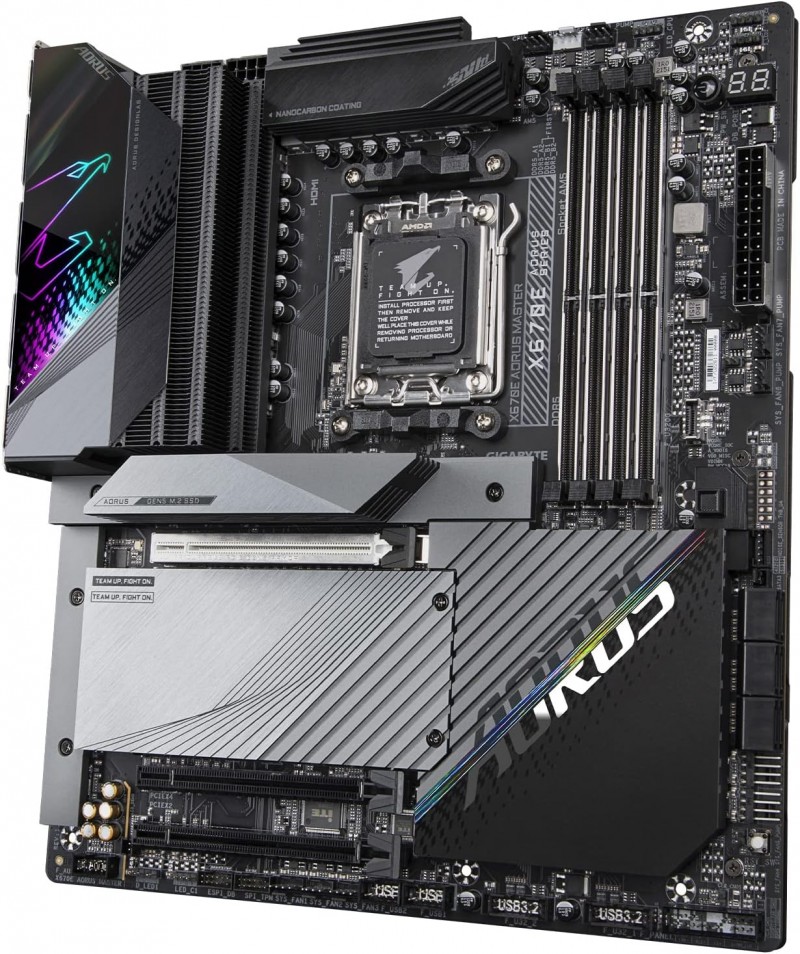

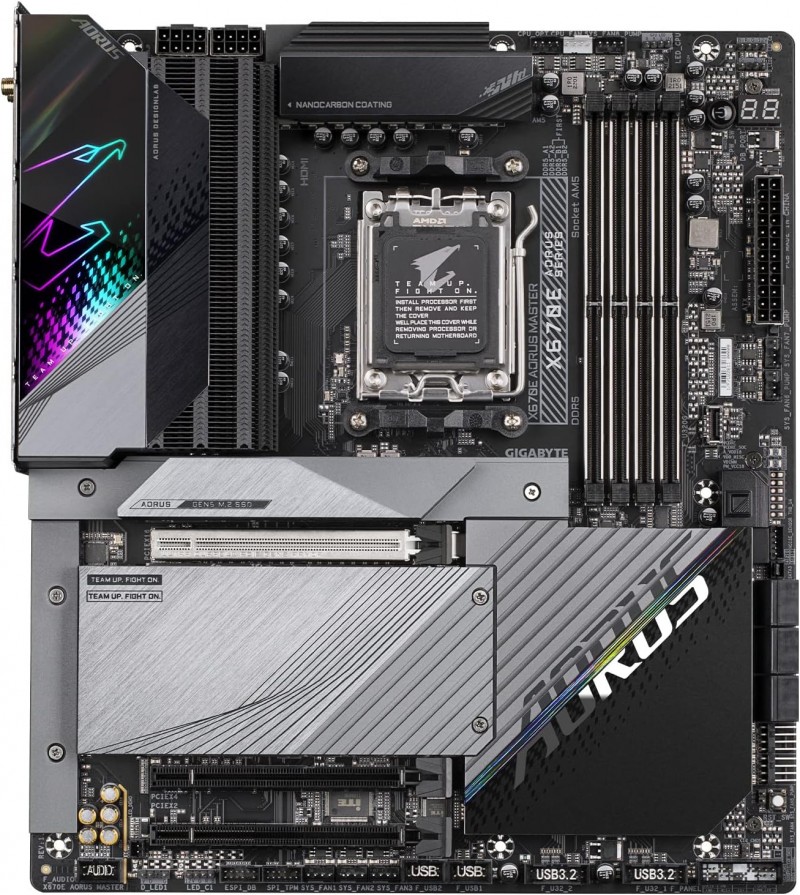

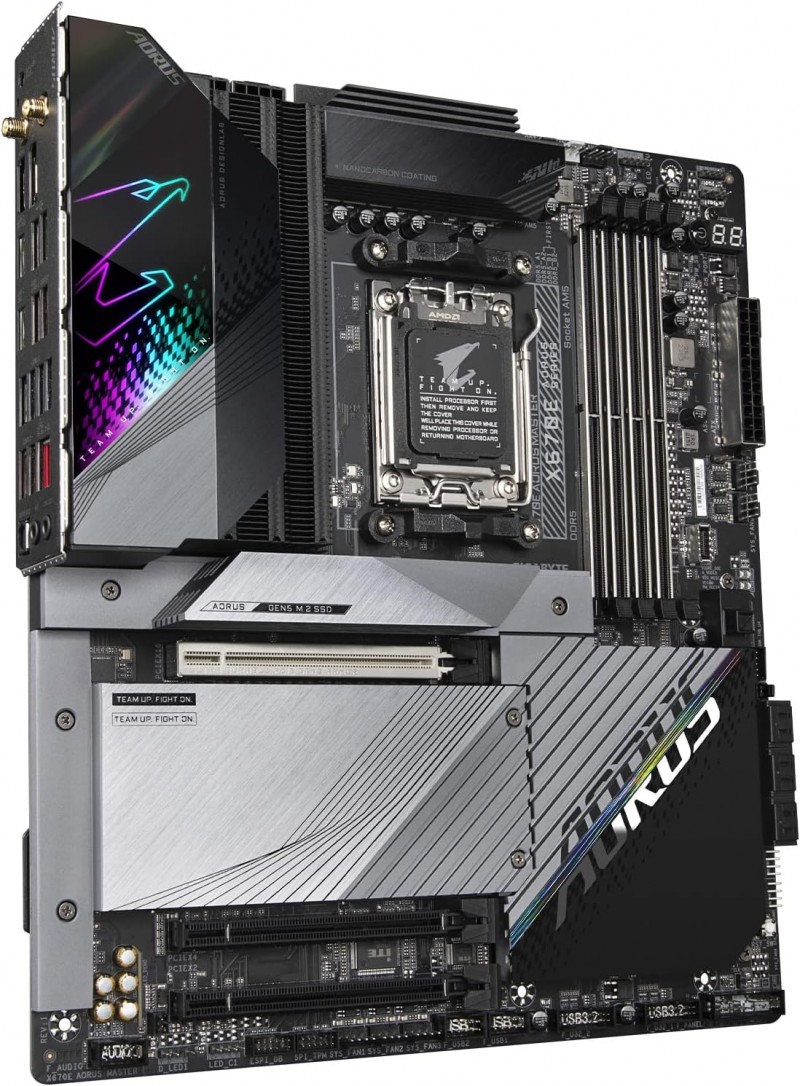

MOTHERBOARD GIGABYTE X670E AORUS MASTER AM5 DDR5

Processor (CPU) Compatibility

• AMD Socket AM5, supporting AMD Ryzen 7000, 8000, and 9000 series processors.

Chipset

• AMD X670

Memory Support

• Supports DDR5 memory modules up to 256 GB (4 DIMM slots, 64 GB per DIMM).
• Overclocked speeds up to DDR5-8000 MT/s, with official support for lower speeds (e.g., 7800/7600/7200/7000/6800 MT/s).
• Dual-channel memory architecture, supporting AMD EXPO and Intel XMP for overclocking.
• Note: CPU and memory configuration may affect supported memory speeds and types.

Graphics (Onboard)

• Integrated Graphics Processor with 1 x DisplayPort (up to 3840x2160 @144Hz), 1 x HDMI (up to 4096x2160 60Hz), and 1 x USB Type-C with video output.
• Supports DisplayPort 1.4 and HDMI 2.1 (with HDR support).
• Graphics specifications depend on the installed CPU.

Audio

• Realtek ALC1220-VB Codec with support for DSD audio on the back panel.
• DTS

  Ultra and High-Definition Audio, supporting configurations from 2 to 7.1 channels.
• Optical S/PDIF out, along with user-configurable audio jacks.

Networking

• Wired: Intel 2.5GbE LAN
• Wireless: Intel Wi-Fi 6E AX210 (PCB rev. 1.0) with Bluetooth 5.3 and 2.4/5/6 GHz bands, or AMD Wi-Fi 6E RZ616 (PCB rev. 1.1) with Bluetooth 5.2.
• Supports up to 2.4 Gbps data rates (depending on environment and equipment).

Expansion Slots

• PCIe Slots:
  • 1 x PCIe 5.0 x16 slot (for AMD Ryzen 7000 Series processors).
  • 1 x PCIe 4.0 x4 and 1 x PCIe 3.0 x2 slot (from chipset).
  • Compatible with both graphics cards and NVMe SSDs (depending on slot).

Storage Interface

• M.2 Slots:
  • 2 x PCIe 5.0/4.0 M.2 slots (direct CPU integration), supporting 25110/22110/2280 SSDs.
  • 2 x PCIe 4.0 M.2 slots (via chipset), supporting 22110/2280 SSDs.
• SATA:
  • 6 x SATA 6Gb/s connectors, RAID 0/1/10 support for both NVMe and SATA devices.
  • Bandwidth-sharing between PCIEX2 slot and SATA3 connectors.

USB Connectivity

• Back Panel:
  • 1 x USB Type-C (USB 3.2 Gen 2), 1 x USB Type-C (USB 3.2 Gen 2x2).
  • 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, and 2 x USB 2.0/1.1.
• Internal Headers:
  • 1 x USB Type-C (USB 3.2 Gen 2x2), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1.

Internal Connectors

• 1 x 24-pin ATX, 2 x 8-pin ATX 12V, 1 x CPU fan header, and 4 x system fan/water pump headers.
• 2 x RGB and 2 x addressable LED strip headers, and more for customization.
• Power/reset buttons, noise detection, voltage measurement points, TPM, and clear CMOS jumper.

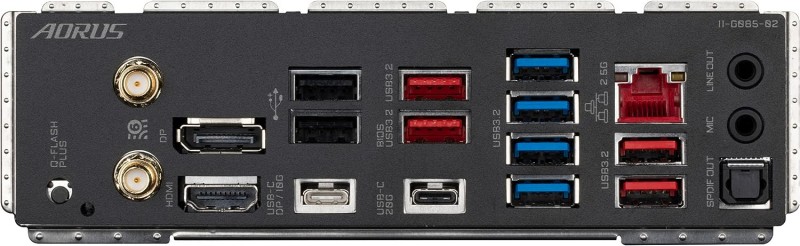

Back Panel Connectors

• 1 x Q-Flash Plus button, 1 x HDMI, 1 x DisplayPort, 2 x USB Type-C (including one for DisplayPort), 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x RJ-45, 2 x audio jacks, and 1 x optical S/PDIF.

Monitoring & Controls

• Voltage, temperature, and fan speed detection, with fail warnings and control through software.

BIOS & Features

• AMI UEFI BIOS with support for Q-Flash, Q-Flash Plus, and Smart Backup.
• Gigabyte Control Center (GCC) compatibility varies by motherboard model.

Software & OS

• Bundled with Norton Internet Security (OEM version) and LAN management software.
• Supports Windows 10/11 64-bit.

Form Factor

• E-ATX (30.5 cm x 26.9 cm).
