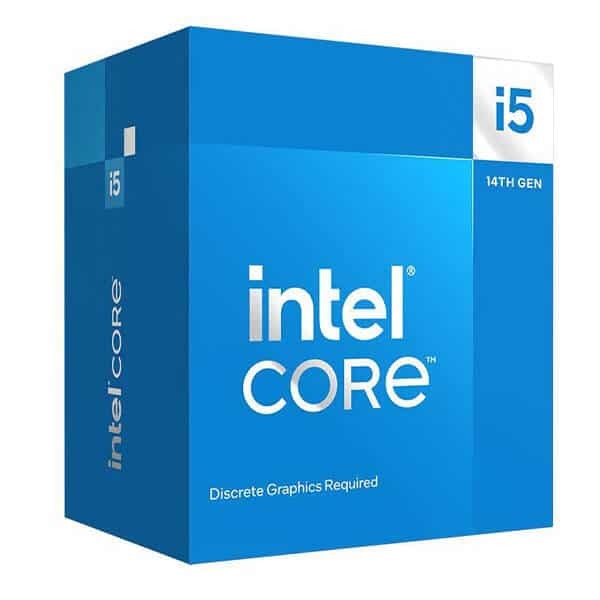

CPU INTEL FCLG 1700 CORE I5-14400 2.50GHZ BOX

MODEL NAME
Intel® Core™ i5-14400

PRODUCT COLLECTION
Intel® Core™ i5 processors (14th Gen)

CODE NAME
Raptor Lake

VERTICAL SEGMENT
Desktop

LITHOGRAPHY
Intel 7

CPU SPECIFICATIONS

• Total Cores: 10 (6 Performance-cores + 4 Efficient-cores)
• Total Threads: 16
• Max Turbo Frequency: 4.7 GHz
• Performance-core Max Turbo Frequency: 4.7 GHz
• Efficient-core Max Turbo Frequency: 3.5 GHz
• Performance-core Base Frequency: 2.5 GHz
• Efficient-core Base Frequency: 1.8 GHz
• Cache: 20 MB Intel® Smart Cache
• Total L2 Cache: 9.5 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 148 W

MEMORY SPECIFICATIONS

• Max Memory Size: 192 GB
• Memory Types:
  • Up to DDR5 4800 MT/s
  • Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 76.8 GB/s

GPU SPECIFICATIONS

• GPU Name: Intel® UHD Graphics 730
• Graphics Max Dynamic Frequency: 1.55 GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 24
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0
• Multi-Format Codec Engines: 1
• Intel® Quick Sync Video: Yes
• Intel® Clear Video HD Technology: Yes
• # of Displays Supported: 4

EXPANSION OPTIONS

• DMI Revision: 4.0
• Max # of DMI Lanes: 8
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes: 20

PACKAGE SPECIFICATIONS

• Sockets Supported: FCLGA1700
• Thermal Solution Specification: PCG 2020C
• Tjunction: 100°C
• Package Size: 45.0 mm x 37.5 mm

ADVANCED TECHNOLOGIES

• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Deep Learning Boost (Intel® DL Boost): Yes
• Intel® Thread Director: Yes
• Intel® Virtualization Technology (VT-x & VT-d): Yes

SECURITY & RELIABILITY

• Intel® AES New Instructions: Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® OS Guard: Yes
• Intel® Boot Guard: Yes
• Intel® Virtualization Technology with Extended Page Tables (EPT): Yes
