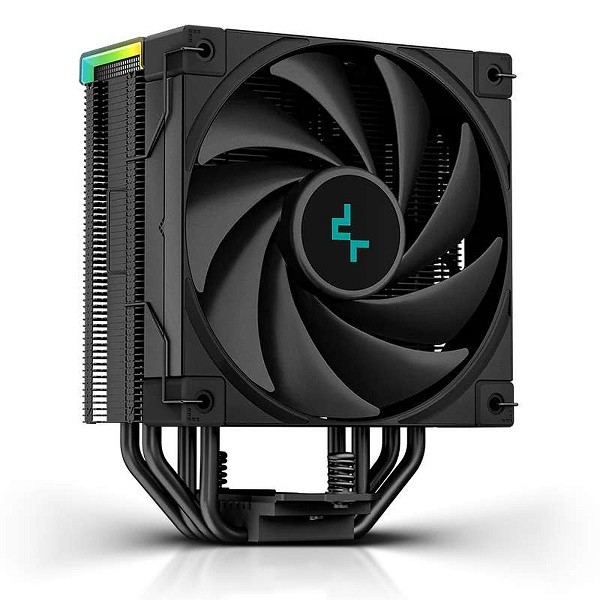

Product Overview
Compatibility:
Intel Sockets: LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155
AMD Sockets: AM5, AM4
Dimensions: 126 mm (L) × 97 mm (W) × 159 mm (H)
Heatsink Dimensions: 120 mm (L) × 60 mm (W) × 152 mm (H)
Net Weight: 862 g
Cooling Specifications
Heatpipes: 4 pcs, Ø6 mm
Fan Dimensions: 120 mm × 120 mm × 25 mm (L×W×H)
Fan Speed: 500–1750 RPM (±10%)
Fan Airflow: 60.89 CFM
Fan Air Pressure: 2.91 mmAq
Fan Noise Level: =25 dB(A)
Fan Electrical Specifications
Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing (FDB)
Rated Voltage: 12 VDC
Rated Current: 0.25 A
Power Consumption: 3 W
RGB Lighting Specifications
LED Type: Addressable RGB LED
LED Connector: 3-pin (+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage: 5 VDC
LED Power Consumption: 4.25 W
Product Identification
EAN: 6933412728832
Part Number (P/N): R-AK400-BKAPMN-G
